JOYAL Roller crusher 2PG1200

2019-03-05 / admin

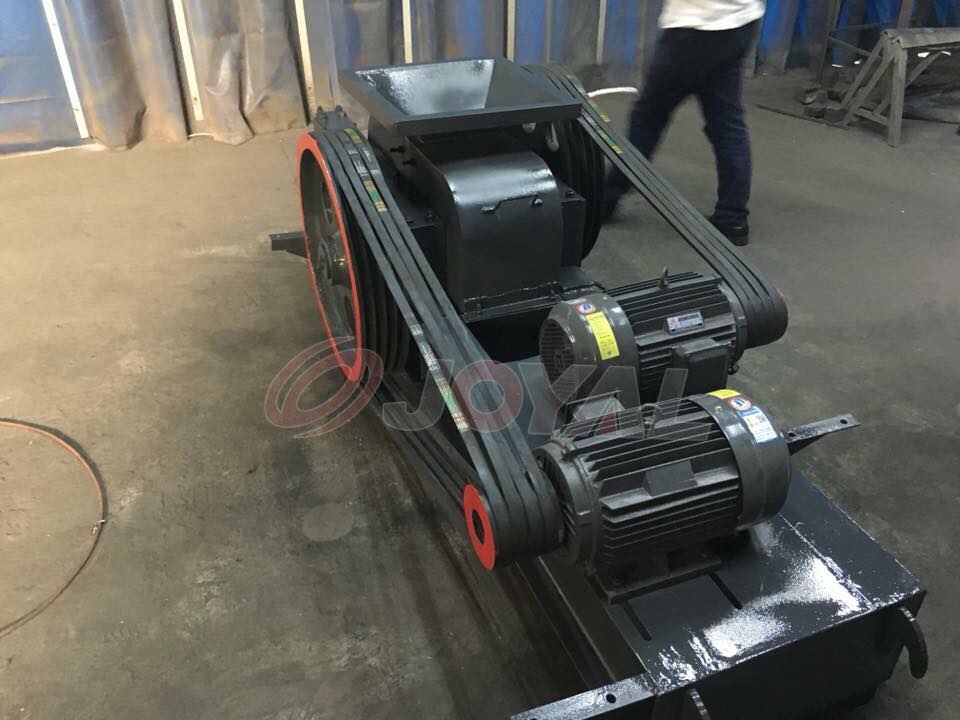

     Roller crusher is used for crushing materials with middle and high hardness, such as metallurgy, building materials, refractory materials and other industrial lines The series hydraulic roller crusher is mainly composed of the parts of roller, the roller support bearings, pressing and adjusting device, and driving device etc..
 It used for crushing of special solid materials, Power consumption is one half of hammer crusher, When the material is too hard to be crushed, the roller will be back down automatically under the action of the spring, it make the rollers’ gap increase, the hard material or the material cannot be crushed will be fell down, so as to protect the machine from being damaged. Adjust the rollers’ gap can control the output size or granularity and then change the capacity per hour.
Hydraulic roller crusher is used of the surface friction making the rollers bite the materials into the broken zone, to make the material be squeezing or splitting.
Can be selected according to the needs of the work, a variety of models, a variety of production options.
the model 2PG1200 data:
Capacity (t/h):30-80
Feed size (mm):<90
Discharge size (mm):3-14
Overall dimension (mm):4547×3653×1478
